Noise Figure Measurement - A Practical Approach

4. Two-port Network Characterization:

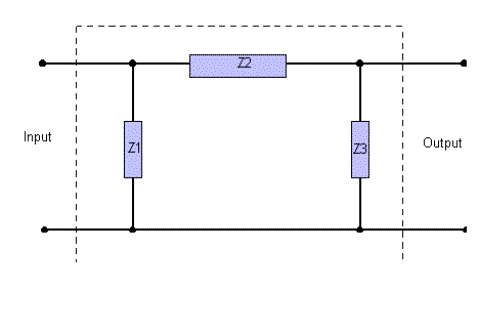

A two-port network can be represented as below:


The noise in a circuit can be characterized by the following parameters:

  1. Gain, G
  2. Bandwidth, B
  3. Noise Figure, F

Assuming that the input is driven by noise temperature at T, the output noise of the two-port network is given by kTGBF, where G is the gain, B is the bandwidth, and F is the Noise figure of the circuit under consideration.
