Relationship Between Csi And Kpi’S, Baselines, Types Of Metrics, Processes
7.7 Relationship between CSI and KPIâ€™s
1) Critical Success Factor (CSF) is something that must happen if an IT service, process, plan, process, or other activity is to succeed.
a) Associate no more than two to five CSFs with a service or process
2) Key Performance Indicators (KPI) are used to measure whether the critical success factors are achieved.
a) Define no more than two to five KPIs per CSF.
b) KPIâ€™s can be quantitative (e.g. cost) or qualitative (e.g. customer satisfaction)
3) Define, monitor and report on only two to three KPIs for each CSF.
a) As the maturity of a service and service management processes increase, additional KPIs can be added.
b) Based on what is important to the business and IT management, the KPIs may change over a period of time.
c) As service management processes are implemented, this will often change the KPIs of other processes.
1) Baselines enable a view of the current situation and also a clear starting point for feature measurements.
2) Baselines need to be documented.
3) Baselines are applicable at strategic goals and objectives, tactical process maturity, and operational metrics and KPIs.
4) Baseline is an initial data point to see if a service or process needs improvement.
7.9 Types of Metrics
A metric is a scale of measure that allows you to define what is to be measured. There are three types of metrics to collect to support CSI activities, they are:
1) Service metrics â€“ these metrics are the results of the end to end service. Technology metrics are used to produce the service metrics.
2) Process metrics â€“ these metrics are captured in the form of Critical Success Factors (CSFs), Key Performance Indicators (KPIs) and activity metrics for the service management processes. Four key areas that KPIs can measure are quality, performance, value and compliance of following the process. CSI would use these metrics as input in identifying improvement opportunities for each process.
3) Technology metrics â€“ these metrics are often associated with component and application based metrics such as performance and availability
7.10.1 The Seven Step Improvement Process
A) Purpose of Seven Step Improvement Process
1) To define and manage the steps required to implement improvements successfully.
2) To identify and define the measurements and metrics.
3) To gather, analyze and report the data.
4) To manage the implementation
B) Objectives of Seven Step Improvement Process
1) Identify improvement opportunities in cost and quality with financial justification (a business case if more complex).
2) Identify the measurements and metrics.
3) Continually review services to ensure they are aligned with business objectives.
4) Understanding what to measure, why it is being measured and carefully defining the successful outcome.
C) Scope of Seven Step Improvement Process
1) Analyze performance and capabilities throughout the lifecycle.
2) Make the best use of latest technology.
3) Improve organizational structures.
4) Continual alignment of the portfolio of IT services with the current and future business needs as well as the maturity of the enabling IT processes for each service.
D) The main steps of Seven Step Improvement Process

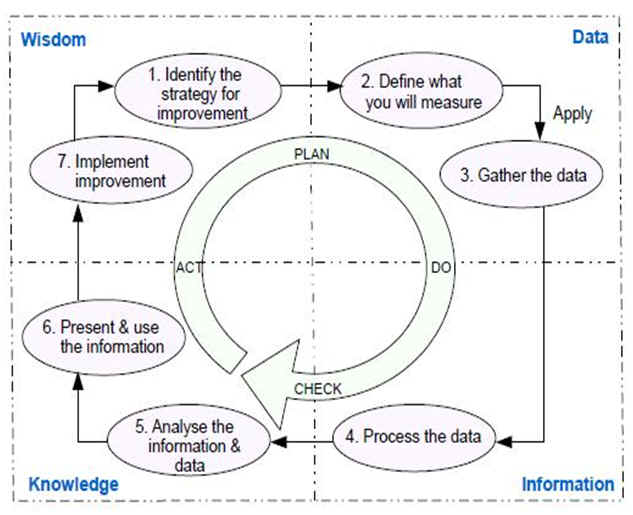

Figure: The Seven Step Improvement Process
1) Identify the strategy for improvement: Identify the overall vision, business need, the strategy and the tactical and operational goals.
2) Define what you will measure: There may be a gap between the capabilities of current tools and mechanisms to provide the necessary information. If the desired data really cannot be gathered or if the cost is prohibitive, the measures in Step 1 may need to be revisited.
3) Gather the data: monitor and capture exceptions, resolutions and trends with the data.
4) Process the data: Here the data is processed in alignment with the CSFs and KPIs specified. This means that timeframes are coordinated, unaligned data is rationalized and made consistent, and gaps in the data are identified. The simple goal of this step is to process data from multiple disparate sources to give it context that can be compared. Once we have rationalized the data we can then begin analysis.
5) Analyze the information and data: Transform the information into knowledge. Develop an understanding of the real meaning of identified patterns and trends, by querying the results to understand its intrinsic value.
6) Present and use the information: present in the correct format with the appropriate details according to audience types. Knowledge is presented to the business in a form and manner that reflects their needs and assists them in determining the next steps.
7) Implement Improvement: Knowledge gained is used to optimize, improve and correct services and processes. Issues have been identified and now solutions are implemented â€“wisdom is applied to the knowledge. Improvements to improve the service or process are communicated and explained to the organization, then the organization establishes a new baseline and the cycle begins anew.
